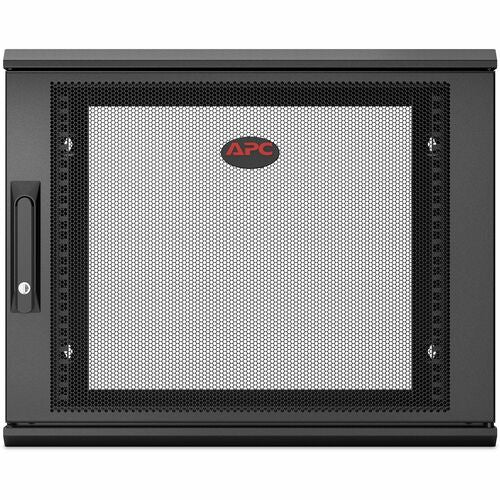

APC by Schneider Electric - APWAR109SH6 Ideal for retail, healthcare, and educational facilities, this wall mount rack offers an efficient solution for deploying server and networking equipment for edge computing applications. This rack enclosure is wall mountable, ideal for areas with limited floor space, and is designed specifically for servers and network switches and patch panels. The cabinet's door is reversible and is compatible with APC's Netbotx security upgrade to provide remote access, video surveillance, and environmental monitoring (sold separately). Optional 120V fan tray can be top or bottom mounted (sold separately) Both the top and bottom feature knockouts of 1/2U mounting space for accessories. And several APC Smart-UPS models low-profile provide easy UPS integration and mounting 9U Wall mount cabinet, mounting depth range of 2.87 to 20.8 inches, 200lb weight capacity, 19"" rack width, ships fully assembled, ventilated with accessory integration options, 5 year APC warranty
Additional Information
ManufacturerSchneider Electric SA
Manufacturer Part NumberAR109SH6
Manufacturer Website Addresshttp://www.schneider-electric.com
Brand NameAPC by Schneider Electric
Product LineNetShelter WX
Product NameNetShelter WX 9U Single Hinged Wall-Mount Enclosure 600mm Deep
Packaged Quantity1 Each
Product TypeRack Cabinet
Application/UsageNetworking, Airflow System
FeaturesSide-to-side Airflow
Mounting PreferenceNo Preference
Form FactorWall Mountable
Color FamilyBlack
Product ColorBlack
Static/Stationary Weight Capacity200.42 lb
Height19.1"
Width23.6"
Depth23.6"
Weight (Approximate)36.80 lb
Rack Height9U
Rack Width19"
Rack Depth20.79"
For Country/RegionUnited States
CompatibilitySide-to-Side Airflow
Certifications & StandardsFree of Substances of Very High Concern above the threshold
Assembly RequiredNo
Optimized Energy EfficiencyYes
Product Take Back ProgramYes
Mercury FreeYes
RoHS Exemption Informationhttps://download.schneider-electric.com/files?p_enDocType
REACH Declaration URLhttps://checkaproduct.se.com/DistantRequestDispatcher.aspx?action
EU RoHS Declaration URLhttps://checkaproduct.se.com/DistantRequestDispatcher.aspx?action
Environmental Profile Availabilityhttps://download.schneider-electric.com/files?p_enDocType
End of Life Manual Availabilityhttps://download.schneider-electric.com/files?p_enDocType
REACH free of SVHCYes
Toxic Heavy Metal FreeYes
Environmentally FriendlyYes
Environmental ComplianceRestriction of Hazardous Substances (RoHS)
