brand:
Black Box
country_of_origin:
CN
height:
0.4
length:
7.1
manufacturer:
Black Box Corporation
mpn:
BBNEVNSL6230005
quantity_size:
1 EA
type:
Connector Cables
upc:
822088034285
weight:
0.1
width:
6.3
Product Description
Black Box - BBNEVNSL6230005
Additional Information
ManufacturerBlack Box Corporation
Manufacturer Part NumberEVNSL623-0005
Manufacturer Website Addresshttp://www.blackbox.com
Brand NameBlack Box
Product LineGigaTrue

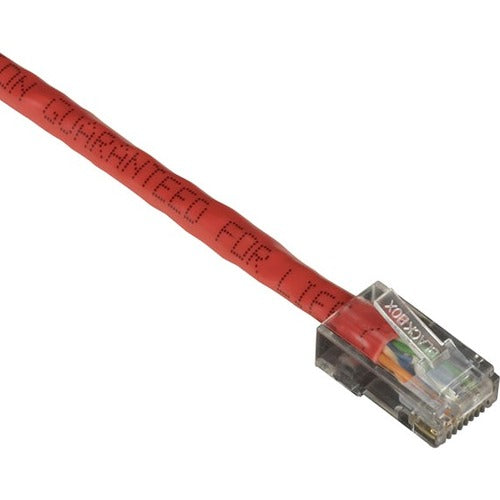

Product NameGigaTrue Cat.6 UTP Patch Network Cable
Packaged Quantity1 Each
Product TypeNetwork Cable
Cable TypeCategory 6
Cable CharacteristicPatch Cable
Cable Length5 ft
Connector Type on First EndRJ-45 Network - Male
Connector on First End Details1 x RJ-45 Network - Male
Connector Type on Second EndRJ-45 Network - Male
Connector on Second End Details1 x RJ-45 Network - Male
ConductorCopper
ShieldingNo
Jacket TypeCM
Device SupportedPatch Panel, Wallplate, Network Device
American Wire Gauge24 AWG
Data Transfer Rate1 Gbit/s
FeaturesStranded, Non-booted, Rugged, Near End Cross Talk (NEXT)
Color FamilyRed
Product ColorRed
Jacket MaterialPolyvinyl Chloride (PVC)
Additional InformationFull Power Sum Performance, Impedance: 100 ± 15 Ohms at 100 MHz, 100 ± 22 Ohms at 100-550 Mhz, Meets balance requirements (LCL/LCTL), Attenuation:23.6 dB at 100 MHz, 39.1 dB at 250 MHz, Delay Skew (Maximum): 25 ns/100 m, Mutual Capacitance (Maximum): 56 pF/m, NEXT: 45.0 dB at 100 MHz, 39.0 dB at 250 MHz, PS-ACR: 32 dB (Typical) at 100 MHz, PS-NEXT: 43.0 dB at 100 MHz, 37.0 dB at 250 MHz, Resistance (Maximum): 9.09 ohms/100 m (328 ft.), Return Loss: 22.5 dB at 100 MHz; 20.5 dB at 250 MHz, Structured Return Loss: 22.5 dB at 100 MHz, 20.5 dB at 250 MhzApplications:1000BASE-T, 100BASE-TX, 100BASE-VG, 155-Mbps ATM, 100-Mbps FDDI/CDDI
Certifications & StandardsEIA/TIA-568-B.2-1
