brand:
Black Box
country_of_origin:
CN
height:
1.1
length:
7.6
manufacturer:
Black Box Corporation
mpn:
BBNEVNSL6790020
quantity_size:
1 EA
type:
Connector Cables
upc:
822088039341
weight:
0.7
width:
6.9
Product Description
Black Box - BBNEVNSL6790020
Additional Information
ManufacturerBlack Box Corporation
Manufacturer Part NumberEVNSL679-0020
Manufacturer Website Addresshttp://www.blackbox.com
Brand NameBlack Box
Product LineGigaTrue

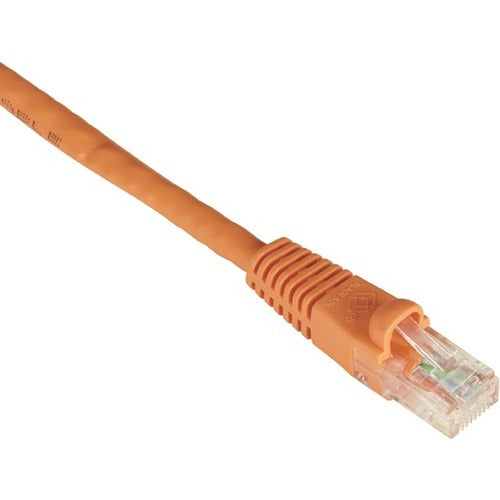

Product NameGigaTrue Cat.6 UTP Patch Network Cable
Packaged Quantity1 Each
Product TypeNetwork Cable
Cable TypeCategory 6
Cable CharacteristicPatch Cable
Cable Length20 ft
Connector Type on First EndRJ-45 Network - Male
Connector on First End Details1 x RJ-45 Network - Male
Connector Type on Second EndRJ-45 Network - Male
Connector on Second End Details1 x RJ-45 Network - Male
ConductorCopper
ShieldingNo
Jacket TypeCM
Device SupportedPatch Panel, Wallplate, Network Device
American Wire Gauge24 AWG
Data Transfer Rate1 Gbit/s
Boot TypeSnagless
FeaturesStranded, Molded, Near End Cross Talk (NEXT)
Color FamilyOrange
Product ColorOrange
Jacket MaterialPolyvinyl Chloride (PVC)
Additional InformationPerfect for full broadband and baseband video, Meets or exceeds all crosstalk and return loss specifications, Full Power Sum performance, Provides full-duplex operation, Meets balance requirements (LCL/LCTL), Improved attenuation provides cleaner data and video transmissions, Attenuation: 23.9 dB at 100 MHz, 39.6 dB at 250 MHz, Cable Diameter: 0.22", Delay Skew (Maximum): 25 ns/100 m (328 ft.), Impedance: 100 ± 15 Ohms at 1-250 MHz, Mutual Capacitance: 56 pF/m (maximum), NEXT: 44.3 dB at 100 MHz, 38.3 dB at 250 MHz, PS-NEXT:42.3 dB at 100 MHz, 36.3 dB at 250 MHz, Resistance (Maximum): 9.38 ohms/100 m (328 ft.)Applications:1000BASE-T, 100BASE-TX, 100BASE-VG, 155-Mbps ATM, 100-Mbps FDDI/CDDI
Certifications & StandardsEIA/TIA-568-B.2-1
