brand:
C2G
country_of_origin:
HK
height:
1.00
length:
7.10
manufacturer:
Legrand Group
mpn:
CGO33030
quantity_size:
1 EA
type:
Connector Cables
upc:
757120330301
weight:
0.10
width:
5.50
Product Description
C2G - CGO33030
Additional Information
ManufacturerLegrand Group
Manufacturer Part Number33030
Manufacturer Website Addresshttp://www.legrand.us
Brand NameC2G

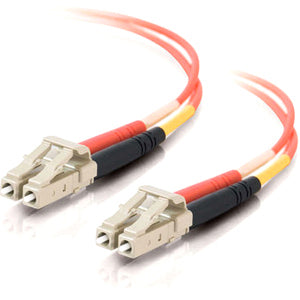

Product NameDuplex Fiber Patch Cable
Packaged Quantity1 Each
Product TypeNetwork Cable
Cable TypeFiber Optic
Cable CharacteristicPatch Cable
Fiber Optic Cable Core/Cladding Specification50/125 µm
Cable Length13.12 ft
Connector Type on First EndLC - Male
Connector on First End Details2 x LC - Male
Connector Type on Second EndLC - Male
Connector on Second End Details2 x LC - Male
Jacket TypePlenum
Color FamilyOrange
Product ColorOrange
Additional InformationBuffer material: PVC, Buffer OD: 900 µm, Jacket OD: 3.0 mm, Jacket color: Orange, Min. bandwidth @850 nm: 160 kHz/km, Min. bandwidth @1310 nm: 500 kHz/km, Attenuation @850 nm: 3.75 dB/km, Attenuation @1310 nm: 1.5 dB/km, Maximum tensile load: 100 N/cm, Loaded min. bend radius: 5 cm, Unloaded min. bend radius: 3 cm, Crush resistance: 750 N/cm, Impact resistance: 1000 cycles, Flex resistance: 5000 cycles
