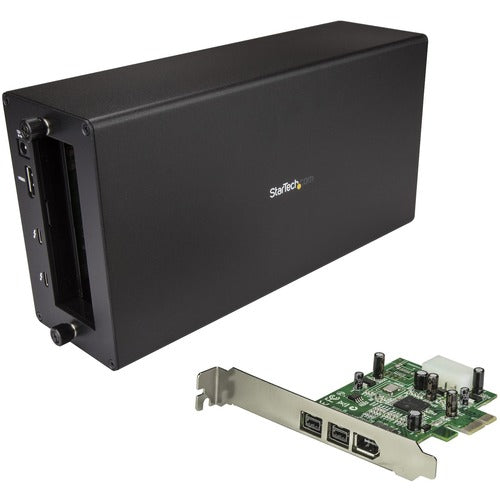

StarTech.com - STCBNDTB1394B3 The Thunderbolt 3 to 1394 FireWire adapter connects your FireWire peripherals to your Thunderbolt 3 computer. This adapter combines StarTech.com's Thunderbolt 3 PCIe Expansion Chassis (TB31PCIEX16) and 1394 FireWire adapter card (PEX1394B3). The chassis uses Thunderbolt 3 technology, the fastest connection available, supporting your FireWire® devices, plus one DisplayPort output and one additional Thunderbolt 3 port. Save on upgrade costs Use your legacy FireWire devices with your next-generation Thunderbolt 3 computer, without having to pay for upgraded peripherals. Increase productivity with Thunderbolt 3 Thunderbolt 3 is the fastest connection available. By avoiding performance bottlenecks, you can accomplish more in the same amount of time. With 40Gbps of throughput and support for other high-performance PCIe cards, you can swap the card in and out, to add the peripherals you need connected to a Thunderbolt 3 desktop or laptop computer. Install with ease Both hot-swap and backward compatible, you can assemble and connect this adapter in minutes. Install the PCIe card using only a Phillips type screwdriver, then plug and play with automatic driver installation. The TB31PCIEX16 is backed by StarTech.com's 2-year warranty. The PEX1394B3 is backed by StarTech.com's lifetime warranty.
Additional Information
ManufacturerStarTech.com
Manufacturer Part NumberBNDTB1394B3
Manufacturer Website Addresshttp://www.startech.com
Brand NameStarTech.com
Product NameThunderbolt 3 to FireWire Adapter - Card & Chassis
Packaged Quantity1
Product TypeExpansion Chassis
Connectivity TechnologyWired
Host InterfaceThunderbolt 3
DisplayPorts Quantity1
Power Plug TypeType N
Power Source TypePower Adapter
Color FamilyBlack
Product ColorBlack
Product MaterialAluminum, Steel
Height3.2"
Width5.6"
Length11"
Weight (Approximate)3.75 lb
Package ContentsThunderbolt 3 to FireWire Adapter - Card & Chassis, AC Adapter
Additional InformationConnector Type(s): 1 - PCI Express x1, Internal Ports: 1 - PCI Express x16; 1 - LP4 (4 pin; Large Drive Power), External Ports: 1 - FireWire 400 (6 pin, IEEE 1394a); 2 - FireWire 800 (9 pin, IEEE 1394b); 2 - Thunderbolt™ 3 USB-C (24-pin) (40Gbps); 1 - DisplayPort (20 pin), Fan(s): Yes, Fans: 1 - 92 mm, Ports: 6, Air Flow Rate: 14.06 CFM, Noise Level: 24.55 dB, Interface: Thunderbolt; FireWire 800 (1394b); FireWire 400 (1394a), Bus Type: Thunderbolt 3; PCI Express, Card Type: Standard Profile, Industry Standards: Thunderbolt 3; IEEE-1394/1394A/1394B; OHCI;PCI Express 1.1, Fan Bearing Type: Sleeve Bearing, Chipset ID: Intel - Alpine Ridge DSL6540 (Thunderbolt Chassis) Texas Instruments - XIO2213B (Firewire card)
Application/UsageDesktop, Laptop
CertificationCE, FCC
Environmentally FriendlyYes
Environmental ComplianceRestriction of Hazardous Substances (RoHS), Waste Electrical and Electronic Equipment Directive (WEEE)
Limited Warranty2 Year
