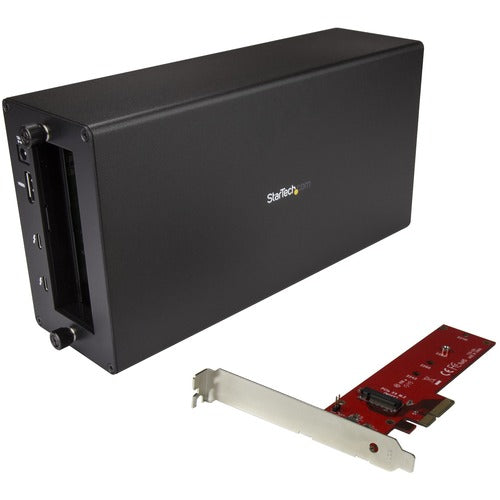

StarTech.com STCBNDTB4M2E1 Thunderbolt 3 to PCIe M.2 adapter - Chassis + Card

StarTech.com STCBNDTB4M2E1 Thunderbolt 3 to PCIe M.2 adapter - Chassis + Card

GTIN : 65030879132

SKU : BDS01-STCBNDTB4M2E1

dropship

Get it by Thu, Nov 06 - Tue, Nov 11

Regular price $508.96 USD
Regular price Sale price $508.96 USD
Sale Sold out
Shipping calculated at checkout.
View full details
brand: StarTech.com
category: Electronics
country_of_origin: TW
height: 5.70
length: 14.20
manufacturer: StarTech.com
mpn: STCBNDTB4M2E1
quantity_size: 1 EA
subcategory: Electronics Accessories
type: Expansion Chassis
upc: 65030879132
weight: 7.10
width: 11.40

Product Description

StarTech.com - STCBNDTB4M2E1 This Thunderbolt 3 to PCIe M.2 adapter lets you take advantage of the speed of PCIe solid-state drives, connected externally to your Thunderbolt 3 desktop or laptop computer. The adapter combines the StarTech.com Thunderbolt 3 PCIe Expansion Chassis (TB31PCIEX16) and the M.2 PCIe SSD adapter card ( PEX4M2E1), giving you a DisplayPort output and an additional Thunderbolt 3 port. Boost your system speed and performance Get ultra-fast data access by adding this PCIe M.2 SSD adapter externally to your existing Thunderbolt 3 computer, using the Thunderbolt 3 chassis -- improving your storage performance and expanding overall capacity. The adapter supports PCIe M.2 SSDs (NVMe and AHCI): 2242, 2260, 2280, and 22110 drives. Extend your workstation Connect additional displays through the chassis' dedicated DisplayPort output and second Thunderbolt 3 (USB-C) port (USB-C video adapter may be required). With two extended displays, you can multitask effortlessly, avoiding the hassle of repositioning open windows or programs repeatedly throughout your workday. Install with ease You can assemble and connect the adapter in minutes. Put it together using only a screwdriver then plug and play with no software or drivers required. The PEX4M2E1 and TB31PCIEX16 are backed by a StarTech.com 2-year warranty.

Additional Information

ManufacturerStarTech.com
Manufacturer Part NumberBNDTB4M2E1
Manufacturer Website Addresshttp://www.startech.com
Brand NameStarTech.com
Product NameThunderbolt 3 to PCIe M.2 adapter - Chassis + Card
Packaged Quantity1
Product TypeExpansion Chassis
Connectivity TechnologyWired
Host InterfaceThunderbolt 3
DisplayPorts Quantity1
Power Plug TypeType N
Power Source TypePower Adapter
Color FamilyBlack
Product ColorBlack
Product MaterialAluminum, Steel
Height3.2"
Width5.6"
Length11"
Weight (Approximate)3.60 lb
Package Contents1 x Thunderbolt 3 PCIe expansion box, 1 x Thunderbolt 3 cable, 4 x Rubber feet, 1 x Universal power adapter (NA/JP, UK, EU, ANZ), 1 x X4 PCI Express® to M.2 PCIe SSD Adapter, 1 x Low profile bracket, 1 x Full profile bracket (prexinstalled), 2 x Quick start guides, 1 x SSD standoff and installation screw
Additional InformationInternal Ports" 1 - PCI Express x16; 1 - PCI Express x4, External Ports: 1 - Thunderbolt™ 3 USB-C (24-pin) (40Gbps); 1 - DisplayPort (20 pin), Drive Connectors: 1 - M.2 (PCIe, AHCI, M-Key, NGFF), Host Connectors: 1 - Thunderbolt™ 3 USB-C (24-pin) (40Gbps), Fan(s): Yes, Fans: 1 - 92 mm, Air Flow Rate: 14.06 CFM, Noise Level: 24.55 dB, Interface: Thunderbolt; PCI Express, Bus Type: Thunderbolt 3; PCI Express, Card Type: Standard Profile, Industry Standards: Thunderbolt 3, Fan Bearing Type: Sleeve Bearing, Chipset ID: Chassis: Intel - Alpine Ridge DSL6540 ; PCIe Card: N/A
Application/UsageDesktop, Laptop
CertificationCE, FCC
Environmentally FriendlyYes
Environmental ComplianceRestriction of Hazardous Substances (RoHS), Waste Electrical and Electronic Equipment Directive (WEEE)
Limited Warranty2 Year
