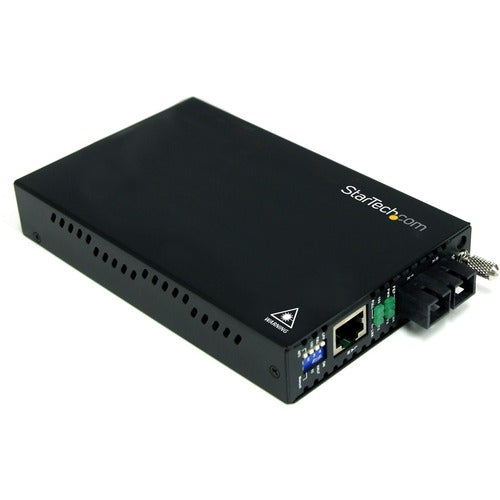

StarTech.com - STCET90110SC2 The ET90110SC2 10/100 Mbps Multimode Fiber Media Converter SC (2 km) lets you extend a Fast Ethernet network (10/100Mbps) over multimode fiber, at distances up to 2 km (1.2 miles).
A cost-effective solution for connecting a 10/100 Mbps Ethernet (10/100Base-T) network to remote network segments over a 100Base-FX fiber backbone, the media converter is designed to offer a durable and convenient Ethernet-to-fiber solution, featuring an all-steel chassis, and a simple plug-and-play installation with minimal configuration required.
For added versatility, this fiber media converter supports standalone operation, or installation into the 20 Slot, 2U Rackmount Chassis (ETCHS2U).
Backed by a StarTech.com 2-year warranty and free lifetime technical support
Additional Information
ManufacturerStarTech.com
Manufacturer Part NumberET90110SC2
Manufacturer Website Addresshttp://www.startech.com
Brand NameStarTech.com
Product Name10/100 Mbps Multi Mode Fiber Media Converter SC 2 km
Packaged Quantity1 Each
Product TypeTransceiver/Media Converter
Total Number of Ports2
Network (RJ-45)Yes
DVINo
USBNo
Parallel PortNo
Digital AudioNo
Digital Audio/VideoNo
Number of Network (RJ-45) Ports1
Number of SC Ports1
SC Port TypeDuplex
Media Type SupportedOptical Fiber, Twisted Pair
Fiber Mode SupportedMulti-mode
Fiber Optic Cable Wavelength1310 nm
Maximum Distance Supported2 km
Ethernet TechnologyFast Ethernet
Network Technology10/100Base-TX, 100Base-FX
Power SourceAC Adapter
Input Voltage12 V DC
Plug/Connector TypeType M
Color FamilyBlack
Product ColorBlack
Form FactorDesktop, Rack-mountable
Height0.9"
Width3.4"
Depth6"
Weight (Approximate)13.80 oz
Package Contents10/100 Mbps Multi Mode Fiber Media Converter SC 2 km, 1 x Universal Power Adapter, 1 x Grounding Screw, 1 x Instruction Manual
CompatibilityETCHS2U Rackmount Chassis
Certifications & StandardsIEEE 802.3, IEEE 802.3u, FC, FCC
Environmentally FriendlyYes
Environmental ComplianceRegistration, Evaluation, Authorization and Restriction of Chemicals (REACH), Restriction of Hazardous Substances (RoHS), Waste Electrical and Electronic Equipment Directive (WEEE)
TAA CompliantYes
