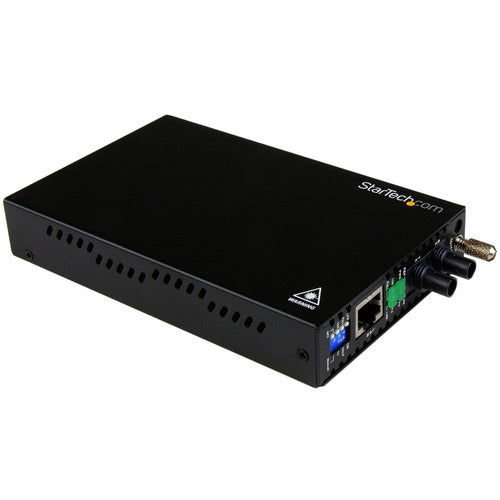

StarTech.com - STCET90110ST2 The ET90110ST2 10/100 Mbps Multimode Fiber Media Converter (ST, 2 km) lets you extend a Fast Ethernet network (10/100 Mbps) over multimode fiber, at distances of up to 2 km (1.2 miles).
A cost-effective solution for connecting a 10/100 Mbps Ethernet (10/100Base-T) network to remote network segments over a 100Base-FX fiber backbone. Designed to offer a durable and convenient Ethernet to fiber solution, the Ethernet to ST Fiber converter features an all-steel chassis, and a simple plug-and-play installation with minimal configuration required.
For added versatility, this fiber media converter supports standalone operation, or installation into the 20 Slot, 2U Rackmount Chassis (ETCHS2U).
Backed by a StarTech.com 2-year warranty and free lifetime technical support
Additional Information
ManufacturerStarTech.com
Manufacturer Part NumberET90110ST2
Manufacturer Website Addresshttp://www.startech.com
Brand NameStarTech.com
Product Name10/100 Mbps Multi Mode Fiber Media Converter ST 2 km
Packaged Quantity1 Each
Product TypeTransceiver/Media Converter
Total Number of Ports2
Network (RJ-45)Yes
DVINo
USBNo
Parallel PortNo
Digital AudioNo
Digital Audio/VideoNo
Management PortNo
Number of Network (RJ-45) Ports1
Number of ST Ports1
ST Port TypeDuplex
Media Type SupportedTwisted Pair, Optical Fiber
Fiber Mode SupportedMulti-mode
Fiber Optic Cable Wavelength1310 nm
Maximum Distance Supported2 km
Ethernet TechnologyFast Ethernet
Network Technology10/100Base-TX, 100Base-FX
Power SourceAC Adapter
Input Voltage12 V DC
Power Consumption19.20 W
Plug/Connector TypeType M
Color FamilyBlack
Product ColorBlack
Form FactorDesktop, Rack-mountable
Height0.9"
Width3.4"
Depth6.1"
Weight (Approximate)13.70 oz
Package Contents10/100 Mbps Multi Mode Fiber Media Converter ST 2 km, 1 x Universal Power Adapter (NA/EU/UK/AU), 1 x Grounding Screw, 1 x Instruction Manual
CompatibilityETCHS2U Rackmount Chassis
Certifications & StandardsIEEE 802.3, IEEE 802.3u, FC, FCC
Environmentally FriendlyYes
Environmental ComplianceRegistration, Evaluation, Authorization and Restriction of Chemicals (REACH), Restriction of Hazardous Substances (RoHS), Waste Electrical and Electronic Equipment Directive (WEEE)
TAA CompliantYes
