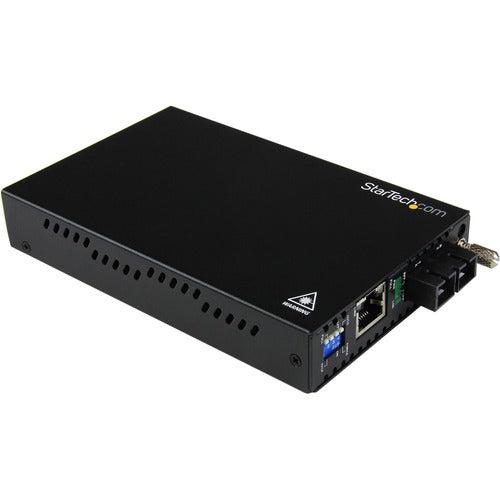

StarTech.com - STCET91000SC2 The ET91000SC2 1000 Mbps Gigabit Multimode Fiber Media Converter (SC, 550m) lets you extend a Gigabit Ethernet network over multimode fiber, at distances up to 550m (1804 ft).
A cost-effective solution for connecting a Gigabit Ethernet (1000Base-T) network to remote network segments over a (1000Base-SX) fiber backbone, the GbE to MM fiber converter supports full Gigabit speeds for ideal network performance and scalability. Designed to offer a durable and convenient Ethernet to fiber solution, this Ethernet to SC Fiber converter features an all-steel chassis, and a simple plug-and-play installation with minimal configuration required.
For added versatility, the fiber media converter supports standalone operation, or installation into the 20 Slot, 2U Rackmount Chassis (ETCHS2U).
Backed by a StarTech.com 2-year warranty and free lifetime technical support
Additional Information
ManufacturerStarTech.com
Manufacturer Part NumberET91000SC2
Manufacturer Website Addresshttp://www.startech.com
Brand NameStarTech.com
Product NameGigabit Ethernet Multi Mode Fiber Media Converter SC 550m - 1000 Mbps
Packaged Quantity1 Each
Product TypeTransceiver/Media Converter
Total Number of Ports2
Network (RJ-45)Yes
DVINo
USBNo
Parallel PortNo
Digital AudioNo
Digital Audio/VideoNo
Management PortNo
Number of Network (RJ-45) Ports1
Number of SC Ports1
SC Port TypeDuplex
Media Type SupportedTwisted Pair, Optical Fiber
Fiber Mode SupportedMulti-mode
Fiber Optic Cable Wavelength850 nm
Maximum Distance Supported0.55 km
Ethernet TechnologyGigabit Ethernet
Network Technology10/100/1000Base-T, 1000Base-SX/LX
Power SourceAC Adapter
Input Voltage12 V DC
Power Consumption4 W
Plug/Connector TypeType M
Color FamilyBlack
Product ColorBlack
Form FactorRack-mountable, Desktop
Height1"
Width3.5"
Depth5.9"
Weight (Approximate)13.90 oz
Package ContentsGigabit Ethernet Multi Mode Fiber Media Converter SC 550m - 1000 Mbps, 1 x Grounding Screw, 1 x Universal Power Adapter, 1 x Instruction Manual
CompatibilityETCHS2U Rackmount Chassis
Certifications & StandardsIEEE 802.3, IEEE 802.3u, IEEE 802.3ab, FC, FCC
Environmentally FriendlyYes
Environmental ComplianceRegistration, Evaluation, Authorization and Restriction of Chemicals (REACH), Restriction of Hazardous Substances (RoHS), Waste Electrical and Electronic Equipment Directive (WEEE)
TAA CompliantYes
